Corner GuardCorner Guard

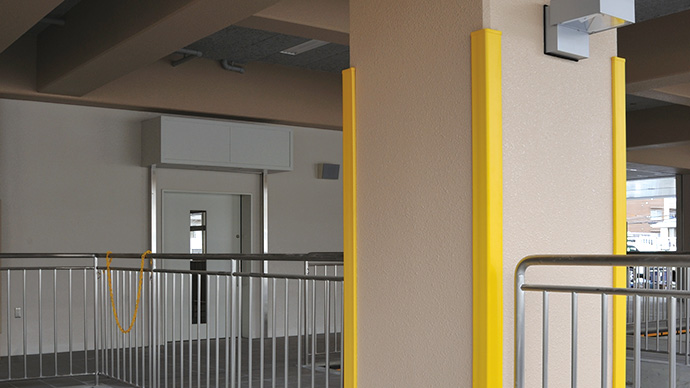

The protector attached to wall and column outer corner of parking lot, factory and warehouse. At the places where vehicles come and go, protects vehicles and people from impact by collision. And also protect the corner of wall and column.

Installation Location

  • Parking Lot

Main Features

Column Protector Absorbs Impact

Corner guard is the protector attached to wall and column outer corner of parking lot, factory and warehouse. At the places where vehicles come and go, protects vehicles and people from impact by collision. And also protect the corner of wall and column. Excellent durability by fixing tightly with anchor, not with double-side tapes or adhesive agents.

Lineup

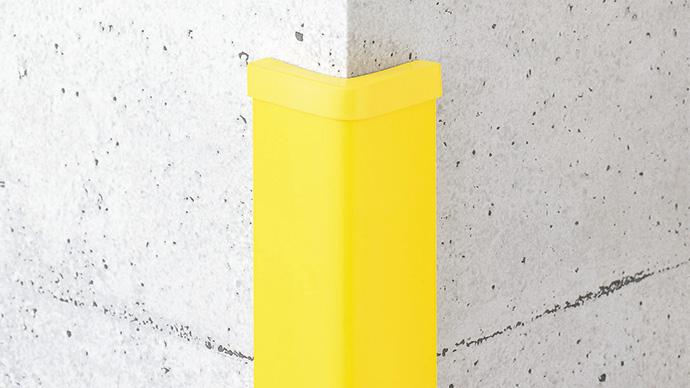

NPC Type

The protector for wall・column attaching to the right angle corner. The size has 3 types of width 35mm, 65mm and 90mm, the length has L=1,000mm and L=2,000mm. NPC type is to attach the main body after fixing the backing board material to wall・column, so that the anchor unseen from outside.

  • NPC-3535V
  • NPC-6565V
  • NPC-9090V

*End cap is option. Recommend to install only upper side if the length is short.

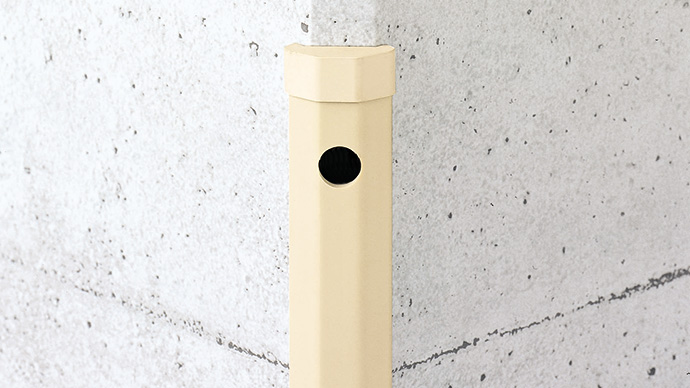

NPO Type

The protector for wall・column attaching to the chamfer corner. The size of chamfer part has 30mm and 50mm, the length has L=1,000mm and L=2,000mm. NPO type is to attach by molding main body and backing board material to wall・column, so that the anchor is visible from round-shaped hole after construction.

  • NPO-3015V
  • NPO-5021V

*End cap is option. Recommend to install only upper side if the length is short.

Color Variation

  • Yellow

  • Black

  • Gray

  • Ivory White

  • Brown

Function/Performance

Method of Care

Wipe with soft cloth. When serious dirt, wipe with cloth impregnated neutral detergent and then use damp cloth. Furthermore, completely dehydrate with dry cloth.

Do not use acidic・alkaline detergent, benzene, thinner, cleaner, polishing powder, etc.

Specification

Material

Main Body/ Soft vinyl chloride

Model No.・Size

Type Model No. Cross Section and Dimensions Standard Length
For Right Angle
NPC Type
NPC-3535V 1,000mm
2,000mm
NPC-6565V 1,000mm
2,000mm
NPC-9090V 1,000mm
2,000mm
For Chamer Right Angle
NPO Type
NPO-3015V 1,000mm
2,000mm
NPO-5021V 1,000mm
2,000mm

Option

End Cap

Installation

Backing Board Material

NPC Type

Material/ Aluminum A6063S-T5

NPO Type

Material/ Steel

Anchor

Type Model No. Standard Length Standard Length
Required Reccomend Size Pitch
For Right Angle
NPC Type
NPC-3535V 1,000mm 6 M4 @420×2 Rows
2,000mm 10 @460×2 Rows
NPC-6565V 1,000mm 6 M5 @420×2 Rows
2,000mm 10 @460×2 Rows
NPC-9090V 1,000mm 6 @420×2 Rows
2,000mm 10 @460×2 Rows
For Chamer Right Angle
NPO Type
NPO-3015V 1,000mm 3 M6 @450
2,000mm 5
NPO-5021V 1,000mm 3
2,000mm 5

*Anchor is by other.
