Wall Guard
Safety CornerCorner Guard
To protect outer corner part of columns and walls from scratching and damaging by carriages.

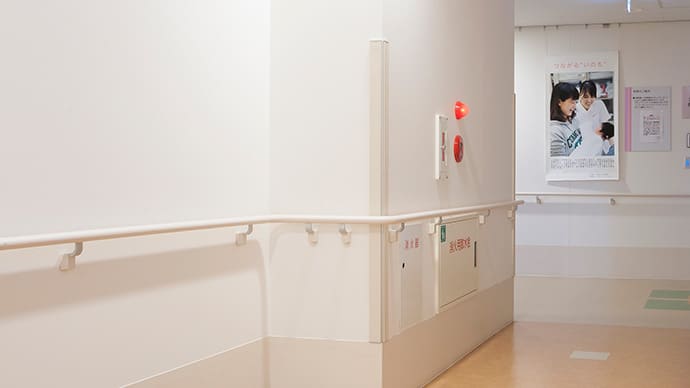

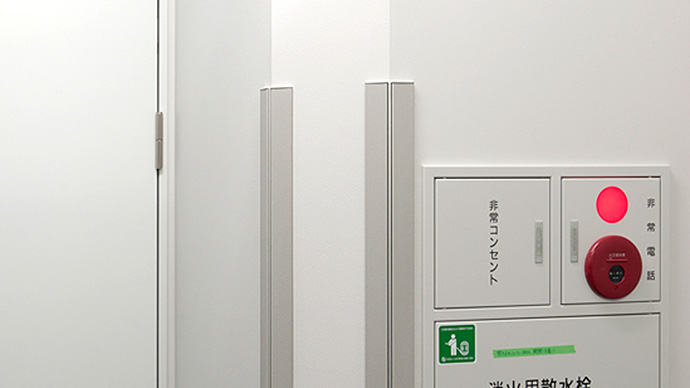

Installation Location
- Corridor
- Inner wall
Main Features
Unify the Color of Hnadrail and Corner Guard
The corner guard often installed at corridors, there be installed handrails and wall guards too. Can make space in unity by choosing the same color from abundant colors.
Anti-Bacterial Effect
Anti-bacterial agent mixed in, it remains permanently sanitary.
*Safety Corner SFT is not mixed anti-bacterial agent
Lineup
Safety Corner NS
- Standard Type
- NS-50V、NS-76V
Plane Color
- NS-50M、NS-76M
Wooden Color
Safety Corner SFT
- Soft Resin
- Made-to-Order Color
(Only No.11 Ivory White, No.12 Light Beige, No.13 Beige, No.73 Birch, No.74 Teak)
- SFT-55V
Plane Color
- SFT-55M
Wooden Color
Safety Corner NT
- Corresponds to 90° and 135° Corner
- The Same Design with Wall Parting Material Safety Molding NT
- NT1-50V、NT2-50V
Plane Color
- NT1-50M、NT2-50M
Wooden Color
Safety Corner NKS
- The Angle Is Chaneable According to the Site
- For 70°〜110° and 110°〜150° Corner
- NKS-50VA、NKS-50VB
Plane Color
- NKS-50MA、NKS-50MB
Wooden Color
Safety Corner CI
- Softly Protect with Round Shape
- Made-to-Order Product (Standard Lot Is 300m)
- CI-36V
Plane Color
Color Variation
Plane Color
-
No.10 Plane White
Only NS・NT・NKS
-
No.02 Gray
Only NS・NT・NKS・CI
-
No.11 Ivory White
-
No.12 Light Beige*
-
No.13 Beige
-
No.22 Light Brown*
Only NS・NT・NKS・CI
-
No.23 Chocolate*
Only NS・NT・NKS・CI
Wooden Color
-
No.74 Teak
-
No.73 Birch
-
No.71 Natural
Only NS・NT・NKS
-
No.70 Light Oak*
Only NS・NT
-
No.90 Oak
Only NS-50M
-
No.75 White Teak*
Only NS・NT
* is made-to-order color.
*Safety Corner SFT and CI-36V are made-to-order product.
Specification
Material
Safety Corner NS
Cover/ Shock resistant hard resin (with anti-bacterial agent・anti-static processing) (Wooden color mixed wood powder.)
Retainer/ Shock resistant hard resin
Safety Corner SFT
Cover/ Soft resin
Retainer/ Extruded Aluminum
Safety Corner NT、Safety Corner NKS、Safety Corner CI
Cover/ Hard Resin (with anti-bacterial agent)
Retainer/ Extruded Aluminum
Model No.・Size
| Series | Model No. | Diameter of Handrail | Standard Length | |
|---|---|---|---|---|
| Width | Thickness | |||
| Safety Corner NS | NS-50V・NS-50M | W=50mm | D=7mm | 2,500mm 3,000mm |
| NS-76V・NS-76M | W=76mm | D=10mm | ||
| Safety Corner SFT | SFT-55V・SFT-55M | W=55mm | D=10mm | 2,500mm |
| Safety Corner NT | NT1-50V・NT1-50M (For 90° Corner) |
W=50mm | D=4.9mm | 2,500mm |
| NT2-50V・NT2-50M (For 135° Corner) |
||||
| Safety Corner NKS | NKS-50VA・NKS-50MA (For 70°~110° Corner) |
W=50mm | D=10mm | 2,500mm |
| NKS-50VB・NKS-50MB (For 110°~150° Corner) |
||||
| Safety Corner CI | CI-36V | W=33.8mm | − | 2,500mm |
*V means plane color, M means wooden color
