Hi-Step UDStair Nosing
Stair Nosing covered metal base part by resin and eliminate exposure of metal part.
Installation Location
- Stairway
Main Features
- Unseen Metal Base
- High Stair Nosing Effect with 50mm Width
- Made-to-Order
Lineup
For PVC Tile

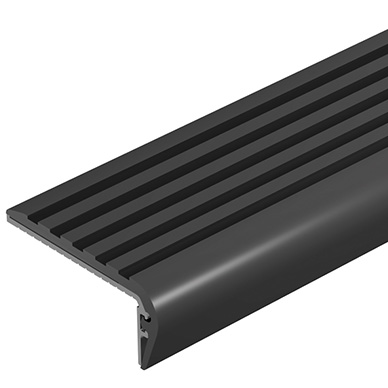

UDP-50S
For Carpet Tile

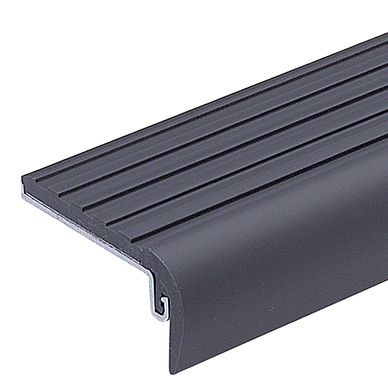

UDC-50S
Color Variation
-
No.02 Gray
-
No.03 Dark Gray
-
No.04 Soft Black
-
No.12 Light Beige
-
No.13 Beige
-
No.14 Dark Beige
-
No.22 Light Brown
-
No.23 Chocolate
-
No.34 Cheese Yellow
-
No.45 Wine Red
-
No.51 Olive Green
-
No.62 Dark Blue
Function/Performance
Repetitive Fatigue Performance
2 Million Times without Exceptional Change
Method/ Internal Fatigue Test
Device/ Fatigue Testing Machine
Content/ 2 Million Times (Weight: 980N/ Time: 40 Times/ Minute)
Result/ Normal
Dimensional Stability
Cancellation Elongation and Contraction
Method/ Dimensional Stability Test
Device/ Heating Experiment Machine
Content/ Determination of Heating 6 Hours [80℃±1℃] after Shrinkage [0.5mm]
Result/ 0~0.6%
Weathering Performance
Exposed Outdoor for 300 Hours without Exceptional Change
Method/ JIS-A-1415 “Exposed Testing Method of Plastic Building Material”
Device/ Sunshine Weather Meter
Content/ 300 Hours of Sunlight
Result/ Normal
Specification
Material
Metal Base/ Extruded Aluminum A-6063S-T5 Anodized
Vinyl Tyre/ Extruded ABS plastic with aluminum sheet (with double-side tape)
Model No.
| Tyre Pattern | For PVC Tile | For Carpet Tile |
|---|---|---|
| Stripe | UDP-50S | UDC-50S |
Installation
Fixing Parts
| Floor Backing Board Material | Screw | Construction Place | Adhesive Agent | ||
|---|---|---|---|---|---|
| Concrete/ Mortar Finishing | P Anchor (Steel) | Indoor | Modified Silicon Resin Composition | ||
| P Anchor (SUS) | Outdoor | Modified Silicon Resin Composition (or Urethane Silicon Resin Composition) |
|||
| Steel (Steel Stairway) | Tapping Screw (SUS) | Indoor, Outdoor | Modified Silicon Resin Composition | ||
*Use screw and adhesive agent together. If only screw, may come off during use.
*At weathered places, as outdoor treatment even if there are roof.
*Floor backing board material is a typical example. For others, please contact with in charge of sales.
