Handrail
Soft HandHandrail for Housing
Resin handrail recommended to install at toilet and corridor of housing. Not slippery dimple processing.

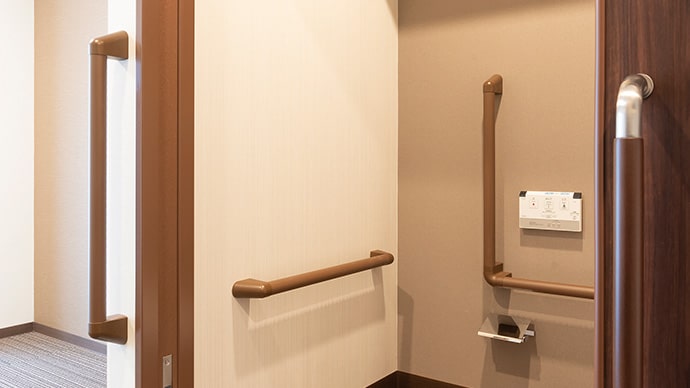

Installation Location
- Corridor
- Toilet
Main Features
- Uneven (Dimple) Processing, Not Slippery even with Wet Hands
- Anti-Bacterial Effect
- Better Living Certified Excellent Housing Parts "BL Certified Products"
Lineup
I-Type
P-34V/P-34M（φ34mm）
I-40/I-50/I-60/I-80
P-30V/P-30M（φ30mm）
I-40/I-50/I-60/I-80
L-Type
P-34V/P-34M（φ34mm）
L-6060/L-7060
P-30V/P-30M（φ30mm）
L-6060/L-7060
Color Variation
Plane Color
-
No.10 Plane White
Only P-34V
-
No.00 White
-
No.09 Grayish White
-
No.11 Ivory White
-
No.22 Light Brown*
* is made-to-order color.
Wooden color
-
No.74 Teak
-
No.73 Birch
-
No.71 Natural
-
No.90 Oak
Only P-34M
Function/Performance
Maximum Load
Vertical,Horizontal: 590N (60kgf)
*It means the ranges not get coming off or cracking less than this load, may cause a little deformation or rattling.
Specification
Material
Cover/ Semihard resin dual-layer forming (with anti-bacterial agent). Wooden color mixed wood powder.
Core/ Stainless steel pipe
Bracket/ ABS Plasti
Model No.・Size
| Model No. | Diameter of Handrail | Size | ||
|---|---|---|---|---|
| I-Type | P-34V（M） | I-40 | φ34mm | L=400mm |
| I-50 | L=500mm | |||
| I-60 | L=600mm | |||
| I-80 | L=800mm | |||
| P-30V（M） | I-40 | φ30mm | L=400mm | |
| I-50 | L=500mm | |||
| I-60 | L=600mm | |||
| I-80 | L=800mm | |||
| L-Type | P-34V（M） | L-6060 | φ34mm | L=600×600mm |
| L-7060 | L=700×600mm | |||
| P-30V（M） | L-6060 | φ30mm | L=600×600mm | |
| L-7060 | L=700×600mm | |||
*V means plane color, M means wooden color
Option
Crescent Anchor
The after fitting anchor to fix handrail on gypsum board wall without reinforcing backing. Open 25mm hole on wall, then put anchor into back side of wall and fix it with opening crescent fitting.
[Specification]
Crescent Fitting/ Steel t=4.5 (Electro Galvanizing Finishing)
Rotating Spacer/ ABS Plastic
Spacer/ ABS Plastic (9.5mm: 1, 3mm: 2)
*Please construct with referring the construction manual. May not be able to secure the right strength if do not follow the construction method.
*The after fitting anchor is excellent at durability, though it is not secure the strength of wall. May the wall be cracked, so that please be careful not to add excessive impact or force.
[Strength Test]
Specimen/ Soft Hand P-34VU
| Wall Material | Horizontal Test | Vertical Test |
|---|---|---|
| Gypsum Board 9.5mm | 696N（71kgf） | 900N（92kgf） |
| Gypsum Board 12.5mm | 980N（100kgf） | 980N（100kgf） |
Slide Shower Hanger SSH-1W
Installation is only to insert into the handrail. In case of after installation, disassemble the handrail and insert this product into, then reassemble it. Cannot install it to the indisassemble handrail.
- Corresponding to φ30・34mm Handrail
- Height adjustment available
- Can install to the dimple processing handrail
- For φ30mm
Only Right-Hand
- For φ34mm
Both-Hand Available
*The picture is right-hand.
*The shower head is not attached.
*Cannot after install to the indisassemble bar・handrail.
Color Variation
-
No.09 Grayish White
