Handrail
Rest HandBackrest・Support Handrail
The burden on users including helpers can be reduced by handrail and backrest to support forward bending and sitting postures.
Installation Location
- Toilet
Main Features
To Keep Posture and Reduce Burden
There are movable handrail to supports forward bending, a movable armrest to supports sitting posture and a backrest to supports the body. It is soft feeling of using with cushioning property (except BH-1h). The burden on users including helpers can be reduced.
Support Standing/ Sitting Posture
Newly support handrail to support users who are elders or having paralysis and helpers. Please access “Support Sitting Posture! Reduce the Toilet Burden”
Lineup

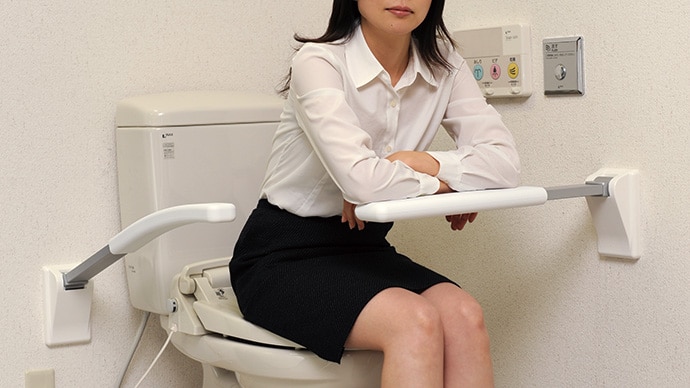

Front Handrail
Attach to front of toilet stool and keep posture easy to excrete. To hold up when not using.
SL-1
L=540、640
SL-1n
L=670
F-Type
L=700
FI-Type
With I-Type Handrail
Movable Handrail
To use as armrest handrail. To hold up when not using.
SL-2
L=600、750

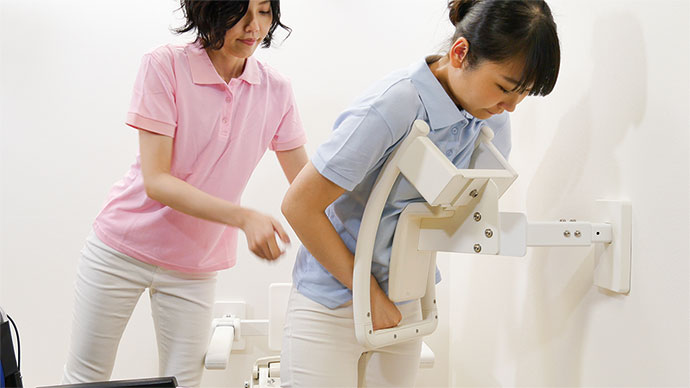

For Standing Posture
Supports the body steady by leaning on.
RS-1 K-Type
Fixed to Wall
Made-to-Order
RS-1 Y-Type
Fixed to Floor
Made-to-Order
For Sitting Posture
K Type (Short, Middle, Long)
Backrest, Movable Handrail
Fixed to Wall
Y-Type
Backrest, Movable Handrail
Fixed to Floor

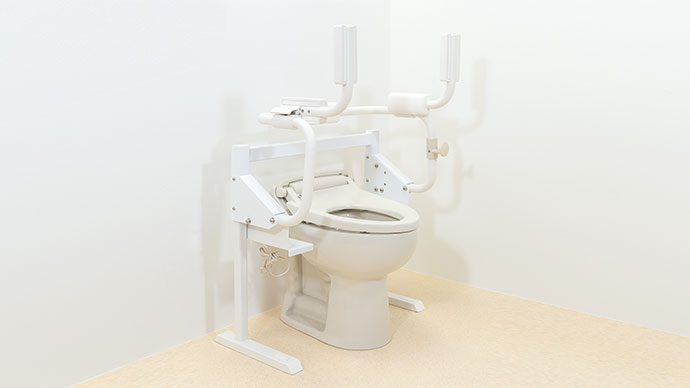

ZS-1 (Sitting Support)
Made-to-Order
Backrest
BH-1 K-Type (For Flashbulb), BH-1 LT-Type (For Low Tank)
BHA K-Type (For Flashbulb)
Protrusion width from wall can adjust by adjuster.
D=147, 157, 167, 177 (mm)
BH-1h K-Type (For Flashbulb), BH-1h LT-Type (For Low Tank)
Hard resin backrest easy to maintenance.
Function/Performance
Maximum Load
Vertical: 1000N (about 102kgf)
Horizontal: 600N (about 61kgf)
*It means the ranges not get coming off or cracking less than this load, may cause a little deformation or rattling.
Specification
Model No.・Size
| Model No. | Size | Arm Width | Material | ||
|---|---|---|---|---|---|
| Front Handrail |
SL-1 |
S-Type：L=540mm L-Type：L=650mm |
90mm |
Main Body/ Steel pipe Baked finish Acrylic, Urethane foam (with anti-bacterial agent) Base Cover/ ABS Plastic |
|
|
SL-1n |
L=670mm | 110mm |
Main Body/ Steel pipe Baked finish Acrylic, Urethane foam Base Cover/ ABS Plastic |
||
|
F-Type |
L=700mm | Maximum 150mm |
Main Body/ Steel pipe Polyester powder coating, Polyethylene foam (with anti-bacterial agent) Base/ Die-Casted Zinc Baked finish Acrylic |
||
|
FI-Type |
I-Type Handrail：L=750mm Front Handrail：L=700mm |
Maximum 150mm |
Handrail/ [Main body] Steel pipe Polyester powder coating, Polyethylene foam (with anti-bacterial agent) [Base] Die-Casted Zinc Baked finish Acrylic |
||
| Movable Handrail |
SL-2 |
S-Type：L=600mm L-Type：L=750mm |
60mm |
Main body/ Steel pipe Baked finish Acrylic, Urethane foam (with anti-bacterial agent) Cover/ ABS Plastic |
|
| For Standing Posture |
RS-1 K-Type |
− | − |
Handle/ [Surface material] Semihard resin (with anti-viral agent) + soft resin dual-layer forming [Core] Stainless steel Chest Pad/ Urethane (White) |
|
|
RS-1 Y-Type |
|||||
| For Sitting Posture |
K-Type |
Short-Type: Protrusion Width L=624～636mm Middle-Type: Protrusion Width L=668～704mm Long-Type: Protrusion Width L=731～767mm |
59.5mm |
Frame/ Steel pipe Polyester powder coating Handrail/ ABS Plastic (with anti-bacterial agent) Backrest/ Urethane Base Cover/ ABS Plastic |
|
|
Y-Type |
― | 59.5mm |
Frame/ Steel pipe Polyester powder coating Handrail/ ABS Plastic (with anti-bacterial agent) Backrest/ Urethane |
||
|
ZS-1 |
― | ― |
Frame/ [Surface Material] Semihard resin (with anti-viral agent) + soft resin dual-layer forming [Core] Stainless steel Base/ Steel pipe Polyester powder coating Chest・Back・Shoulder Pad/ Urethane Foam |
||
| Backrest | For Flush Valve |
BH-1 K-Type |
― | ― |
Backrest/ Urethane Frame/ Semihard Resin dual-layer forming + Stainless steel pipe (with anti-viral agent) ※Frame color can choose from No.10 Plane White・No.11 Ivory White・No.73 Birch Base Cover/ ABS Plastic |
|
BHA K-Type |
― | ― |
Backrest/ Urethane Frame/ Stainless steel pipe Powder coating (No.10 Plane White) Base Cover/ ABS Plastic |
||
|
BH-1h K-Type |
― | ― |
Backrest/ Unsaturated Polyester Resin Frame/ Semihard Resin dual-layer forming + Stainless steel pipe (with anti-viral agent, No.10 Plane White) Base Cover/ ABS Plastic |
||
| For Low Tank |
BH-1 LT-Type |
― | ― |
Backrest/ Urethane Frame/ Semihard Resin dual-layer forming + Stainless steel pipe (with anti-viral agent) ※Frame color can choose from No.10 Plane White・No.11 Ivory White・No.73 Birch Base Cover/ ABS Plastic |
|
|
BH-1h LT-Type |
― | ― |
Backrest/ Unsaturated Polyester Resin Frame/ Semihard Resin dual-layer forming + Stainless steel pipe (with anti-viral agent, No.10 Plane White) Base Cover/ ABS Plastic |
||
Option
Stopper
SL-1, SL-1n, SL-2
To fix the movable handrail with flipping up condition, prevent the accident by wrong using.
Cushion Cover
F-type, FI-type
The cover to attach to cushion part. It can put off and wash.
