Handrail
Grab Bar SS(SC)Stainless Steel Grab Bar
All stainless steel or combination type of stainless and resin handrail for toilets. Recommend to toilets and bathrooms.
Installation Location
- Toilet
- Bathroom
Main Features
Stainless Steel Grab Bar for Toilet
The grab bar recommended to install at around toilet (handrail diameter isφ34mm). It suits toilet and bathroom with simple structure and the shape is good affinity with faucet attachment. There are stainless steel type (SS) and combination type of resin and stainless (SC). The resin part mixed anti-bacterial agent.
- Can Make Ordered Dimensions ans Shapes
- Made-to-Order

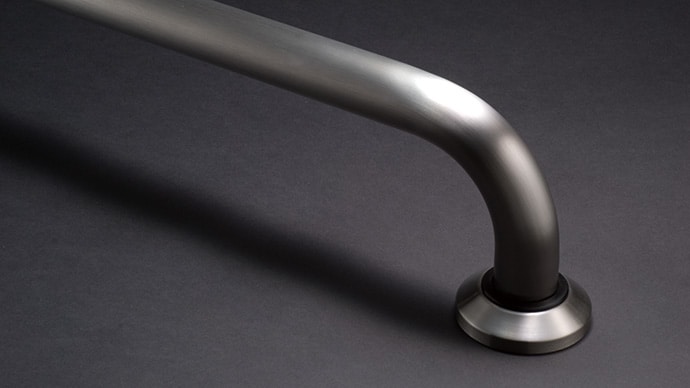

Stainless Steel Type (SS)

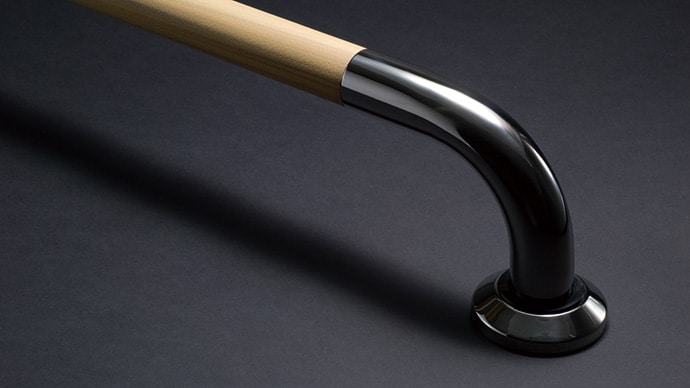

Combination Type (SC)
Lineup
For Multipurpose I-Type
SS（SC）-I600/SS（SC）-I800
For Multipurpose L-Type
SS（SC）-LA7060L（R）/SS（SC）-LA7070L（R）
*pictures is L (Left-Handed)
SS（SC）-LB8080L（R）
*pictures is L (Left-Handed)
SS（SC）-LC7080L（R）
*pictures is L (Left-Handed)
SS（SC）-LD7070
*Common in Left and Right
Movable Type
SS（SC）-CU3
Vertical Movable Type
L=750
SS（SC）-CS2
Horizontal Movable Type
L=750
For Urinal
SS（SC）-CC2
For Japanese-Style Stool
SS（SC）-W2
For Toilet Seat/ Wash Basin
SS（SC）-P4
L=700、H=700
SS（SC）-P5
L=800、H=740
For Wash Basin
SS（SC）-P6
Combination Type (Resin Part) Color Variation
-
Plane Gray White
-
Plane Light Beige
-
Natural Wood
Plane Gray White
Plane Light Beige
Natural Wood
Function/Performance
Maximum Load
Vertical: 1500N (about 153kgf)
Horizontal: 800N (about 81kgf)
*It means the ranges not get coming off or cracking less than this load, may cause a little deformation or rattling.
Specification
Material
Stainless Steel Type
Main Body/ Stainless Steel Hairline Finish
Combination Type
[Metal Part] Stainless Steel #400
[Resin Part] Soft Resin Covered
Model No.・Size
| Model No. | Diameter of Handrail | Size | ||
|---|---|---|---|---|
| For Multipurpose I-Type | |
SS（SC）-I600 | φ34mm | L=600mm |
| SS（SC）-I800 | L=800mm | |||
| For Multipurpose L-Type |
|
SS（SC）-LA7060L (Left-Handed) |
L=700×600mm | |
| SS（SC）-LA7060R (Right-Handed) |
||||
|
SS（SC）-LB8080L (Left-Handed) |
L=800×800mm | ||
| SS（SC）-LB8080R (Right-Handed) |
||||
|
SS（SC）-LC7080L (Left-Handed) |
L=700×800mm | ||
| SS（SC）-LC7080R (Right-Handed) |
||||
|
SS（SC）-LD7070 (Common in Left and Right) |
L=700×700mm | ||
| For Toilet Seat | |
SS（SC）-CU3 (Vertical Movable Type) |
L=750mm | |
|
SS（SC）-CS2 (Horizontal Movable Type) |
L=750mm | ||
|
SS（SC）-P4 | L=700mm H=700mm |
||
|
SS（SC）-P5 | L=800mm H=740mm |
||
| For Japanese-Style Stool | |
SS（SC）-W2 | W=500mm H=600mm |
|
| For Urinal | |
SS（SC）-CC2 | L=550mm W=600mm H=440mm |
|
| For Wash Basin | |
SS（SC）-P6 | L=800mm W=700mm H=740mm |
|
