Cushion LaneSoft Corridor・Stairway Handrail
The soft continuous handrail. Can grip firmly in case of emergency. For indoor.

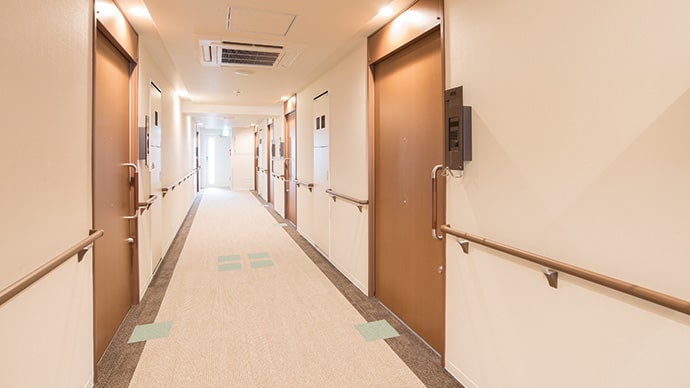

Installation Location
- Corridor
Main Features

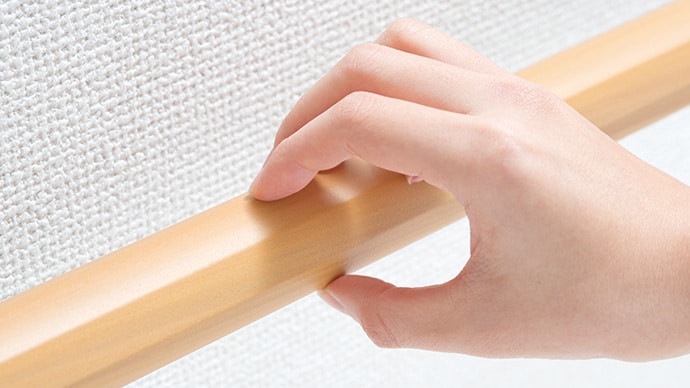

Soft Continuous Handrail with Adequate Elasticity
With moderate elasticity, can grip in the time of need. Adopt the octagonal cross section to fit a finger joint.
- Anti-Bacterial Effect
Lineup
Color Variation
-
No.11C Ivory White*
-
No.23C Chocolate*
-
No.74C Teak
-
No.73C Birch
-
No.71C Natural
-
No.90C Oak
* is made-to-order color.
Parts
Bracket
-
AFN-55/AFN-65/AFN-75
Color/ Gray, White, Wooden Color
Material/ Extruded Aluminum, ABS Plastic -
AGS-55/AGS-65
Material/ Extruded Aluminum
-
AES-55/AES-75
Material/ Extruded Aluminum
-
AES-5560
Material/ Extruded Aluminum
-
AFS-5577
Color/ Gray, White, Wooden Color
Material/ Extruded Aluminum, ABS Plastic -
UN-55/UN-75
Material/ Die-Casted Zinc, ABS Plastic
-
US-55/US-75
Material/ Die-Casted Zinc, ABS Plastic
-
TS-65
Material/ Extruded Aluminum, ABS Plastic
Only T-533 -
JS-55
Material/ Die-Casted Zinc, ABS Plastic
-
FB Bracket
Material/ Steel FB-9×25
-
Vertical Bracket SS-55
Color/ Gray, White, Wooden Color
Material/ Die-Casted Zinc, ABS Plastic -
For Lattice KK Fixing Seat
Material/ Die-Casted Aluminum
-
Movable KDS-55
Material/ Die-Casted Zinc, Stainless Steel
Only O-34 -
Removable TH Fixing Seat
Material/ Stainless Steel
-
Removable OT Bracket
Material/ Extruded Aluminum
Baluster
-
φ42.7
Within @1,000
-
φ22
Balusterφ22 for Stairway
-
φ27
Balusterφ27 for Stairway
-
□19
Balusterφ19 for Stairway
-
□24
Balusterφ24 for Stairway
Color Variation
-
Stainless Steel
#400 (Mirror Polishing)
-
Stainless Steel
Hairline
-
Steel
05 Soft Black
-
Steel
06 Sand Black
-
Steel
16 Snow White
-
Steel
17 Moon Snow
End Cap
-
VA-End
-
FA-End
Only O-34, O-40
Joint
-
Joiner
*The shape is different from picture.
-
LA Corner Joint
Function/Performance
Strength
It satisfies the standard for certifying fine housing parts of Better Living Association.
Bracket span according to diameter of handrail, it has strength enough to endure 1150N horizontal, vertical load for each 1 span.
*Bracket Span 910mm
Vertical Load
Horizontal Load
Specification
Material
Cover/ Semihard resin + Soft resin dual-layer forming (with anti-bacterial agent)
Retainer/ Extruded Aluminum
Model No.・Size
| Type | Model No. | Diameter of Handrail | ||
|---|---|---|---|---|
| For Indoor | Octagon | Wooden Color | CE-34M | W35.5×H34.3mm |
| Plane Color | CE-34V | |||
