Handrail
5mm Gap For IndoorHandrail
Standard resin handrail. Preparing plenty of brackets and balusters. For indoor.
Installation Location
- Corridor
- Stairway
Main Features

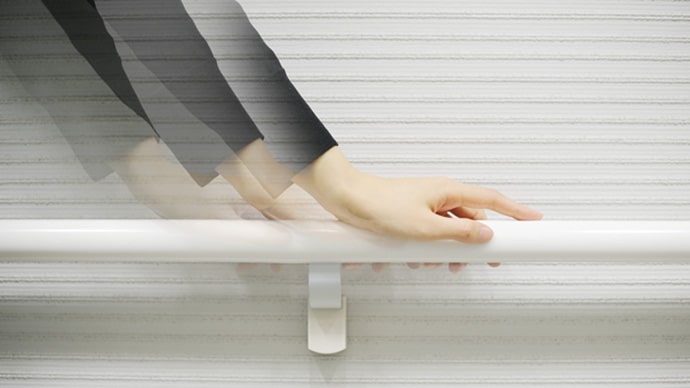

Continuous Handrail Special Arranged to Grip
When use handrails that involves 2 motions “grip” and “rub”, so that continuous, easy to grip and rub handrail shape is the best. Bracket, to support the gripping part, shape of supporting from the bottom is convenient and safety. Because fingers hardly touching on bracket, can grip handrail firmly and also not to be a hindrance to rub. Handrail with slim gap is nearly circular shape so that little discomfort and convenient to grip and also more safely.
- Anti-Bacterial Effect
- Anti-Viral Effect
Shape of Handrail
Lineup
VINI LANE
Plane color of corridor,stairway handrail for indoor. You can select from abundant color variation to match space.
*T-533 is only No.10 Plane White
Color Variation
-
No.10 Plane White
-
No.02 Gray
-
No.03 Dark Gray
-
No.04 Soft Black
-
No.05 Black*
Only O-34Vsl, Coating Cap
-
No.11 Ivory White
-
No.12 Light Beige*
-
No.13 Beige
-
No.22 Light Brown
-
No.23 Chocolate
-
No.34 Cheese Yellow*
Only O-34, There are no V-end, F-end, R-end, D-end, Joint Ring
-
No.45 Wine Red*
-
No.51 Olive Green*
-
No.62 Dark Blue*
* is made-to-order color.
NEO WOOD
Resin handrail mixed wood powder and adds woody feeling. Smooth touch feeling, not likely resin.
*T-553 is only No.73 Birch
Color Variation
-
No.74 Teak
-
No.73 Birch
-
No.71 Natural
-
No.70 Light Oak*
-
No.90 Oak
-
No.75 White Teak*
* is made-to-order color.
Parts
Bracket
-
AFN-55/AFN-65/AFN-75
Color/ Gray, White, Wooden Color
Material/ Extruded Aluminum, ABS Plastic -
AGS-55/AGS-65
Material/ Extruded Aluminum
-
AES-55/AES-75
Material/ Extruded Aluminum
-
AES-5560
Material/ Extruded Aluminum
-
AFS-5577
Color/ Gray, White, Wooden Color
Material/ Extruded Aluminum, ABS Plastic -
UN-55/UN-75
Material/ Die-Casted Zinc, ABS Plastic
-
US-55/US-75
Material/ Die-Casted Zinc, ABS Plastic
-
TN-55
Color/ Gray, White
Material/ Extruded Aluminum, ABS Plastic
Only O-34, D-432 -
TS-65
Material/ Extruded Aluminum, ABS Plastic
Only T-533 -
JS-55
Material/ Die-Casted Zinc, ABS Plastic
-
FB Bracket
Material/ Steel FB-9×25
-
Vertical Bracket SS-55
Color/ Gray, White, Wooden Color
Material/ Die-Casted Zinc, ABS Plastic
Only O-34, D-40 -
End Bracket K-55/K-75/KA-55/KA-75
Color/ Plane, Wooden Color
Material/ Die-Casted Zinc, ABS Plastic
Only O-40 (O-34 only No.03 Dark Gray, No.22 Light Brown, No.23 Chocolate) -
For Lattice KK Fixing Seat
Material/ Die-Casted Aluminum
-
Movable KDS-55
Material/ Die-Casted Zinc, Stainless Steel
Only O-34 -
Removable TH Fixing Seat
Material/ Stainless Steel
-
Removable OT Bracket
Material/ Extruded Aluminum
Baluster
-
φ42.7
Within @1,000
-
φ22
Balusterφ22 for Stairway
-
φ27
Balusterφ27 for Stairway
-
□19
Balusterφ19 for Stairway
-
□24
Balusterφ24 for Stairway
Color Variation
-
Stainless Steel
#400 (Mirror Polishing)
-
Stainless Steel
Hairline
-
Steel
05 Soft Black
-
Steel
06 Sand Black
-
Steel
16 Snow White
-
Steel
17 Moon Snow
End Cap
-
D-End
Only O-34 (D-432 only No.10 Plane White. T-533’s shape is different.)
-
V-End
Only O-34, O-40, D-432
-
VA-End
(T-533’s shape is different)
-
End Spacer
Only O-34, D-432
-
F-End
Only O-34, O-40
-
FA-End
Only O-34, O-40, T-533 (T-533’s shape is different)
-
S-End
Only D-432
-
SA-End
Only D-432
Joint
-
Joint Ring
Only O-34, O-40, D-432
-
Joiner
Only O-34, O-40, D-432
-
L Corner Joint
Only O-34, D-40
-
LA Corner Joint
Only O-34, O-40
Function/Performance
Anti-Viral Performance
This product used anti-viral effect resin. It is effective for viral infection at place like many people come and go such as public facilities, schools, medical and welfare facilities.
Species of Virus and Disinfection Mechanism
Enveloped
Influenza virus, SARS virus, herpes virus and avian influenza virus are representative. Can destroy the envelope which needed for infection by disinfection liquid such as soap and alcohol
Non-Enveloped
Norovirus, adenovirus (cause common cold), rhinovirus (cause common cold) and poliovirus are representative. Need to destroy virus itself by powerful disinfection liquid such as hypochlorite.
Over 99% of Anti-Viral Effect in 8 Hours
- Testing Method
- Anti-viral performance test using virus refer to ISO18184, JIS R 1756.
- Using Virus
- Virus A (Enveloped)
Virus B (Non-Enveloped) - Test Condition
- Bright place (200lx)・Dark place/ Evaluate as number of virus after 8 hours
- Testing Laboratory
-
General Incorporated Association Kitasato Research Center for Environmental Science
Report No.
“Kitakanhatsu 2015-1064” “Kitakanhatsu 2015-0064”
“Kitakanhatsu 2015-1070” “Kitakanhatsu 2015-0070”
Technology about anti-viral performance using a patent of National University Corporation the University of Tokyo and Kanagawa Institute of Industrial Science and Technology (KISTEC)
Anti-viral performance values of our company’s handrail.
- *Anti-viral effect is for only indoor. The outdoor is not covered.
- *Actual effect depends on the installation location and using conditions.
- *Anti-viral effect does not express all virus. And also, the same effect does not necessarily express all virus.
- *Anti-viral effect express only virus adhere to corresponding products, not ensure the prevention of infection
- *It is not object to medical care of medicines and medical equipment.
Anti-Bacterial Performance
Over 99.9% of Anti-Bacterial Effect
- Testing Method
- By JIS Z 2801:2010 (film adhesion method)
- Using Bacterial Strain
- Staphylococcus Aureus（NBRC12732）
Escherichia Coli（NBRC3972) - Testing Laboratory
- General Incorporated Association Boken Quality Evaluation Institute
- *Evaluation criterion of anti-bacterial performance is defined over 2.0 as anti-bacterial activity values. anti-bacterial activity values show the bacteria inactivated 90% at 1.0, 99% at 2.0, 99.9% at 3.0.
- *Actual effect depends on the installation location and using conditions.
- *Anti-bacterial effect does not express all bacteria. And also, the same effect does not necessarily express all bacteria.
- *Anti-bacterial effect express only virus adhere to corresponding products, not ensure the prevention of infection.
- *It is not object to medical care of medicines and medical equipment.
Strength
It satisfies the standard for certifying fine housing parts of Better Living Association.
Bracket span according to diameter of handrail, it has strength enough to endure 1150N horizontal, vertical load for each 1 span.
*O-34,D-432: Bracket span 910mm, O-40: Bracket span 1,200mm
Vertical Load
Horizontal Load
Specification
Material
Cover/ Semihard resin dual-layer forming (with anti-viral agent), NEO WOOD mixed wood powder
Retainer/ Extruded Aluminum
Model No.・ Size
| Model No. | Diameter of Handrail | |||
|---|---|---|---|---|
| For Indoor | VINI LANE | φ34 | O-34Vsl | φ34mm |
| φ40 | O-40Vsl | φ40mm | ||
| Elliptic Shape | D-432Vsl | 40×32mm | ||
| Inverted Triangular Shape | For Corridor T-533Msl |
50×33mm | ||
| Made-to-Order | φ34 | O-34VSsl | φ34mm | |
| NEO WOOD | φ34 | O-34Vsl | φ34mm | |
| φ40 | O-40Msl | φ40mm | ||
| Elliptic Shape | D-432Msl | 40×32mm | ||
| Inverted Triangular Shape | For Corridor T-533Vsl |
50×33mm | ||
