Products
Access Hatch
Wall Hatch SHA
Energy saving design with gasket. 400×700, 600×600. Custom-made size available from 300×300 to 600×900.
Installation Location
- Inner wall
Main Features
- Energy Saving Design with Gasket
- From 300×300 to 600×900
- Only for Right Fix
Lineup
Size
- 400×700（mm）
- 600×600（mm）
Opening and Closing Part
-

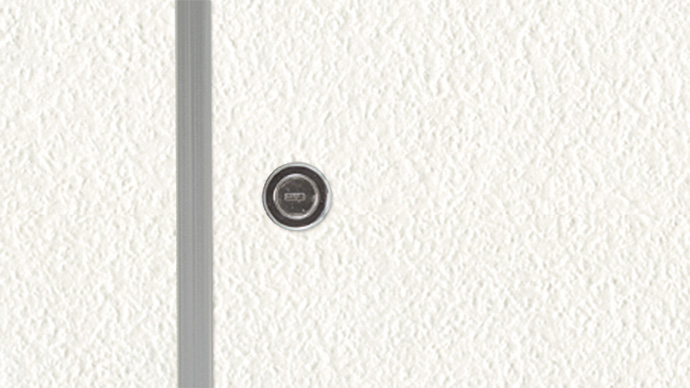

Standard (Key Type 0200)
The key is standard equipment. The door can open by right and left.
Color Variation
-
Silver Color
Specification
Material
Outer Frame, Inner Frame / Extruded Aluminum A6063S-T5 Anodized (Custom-Made Color Available)
Model No. / Dimensions
| 400×700 | □600 | |||
|---|---|---|---|---|
| Model No. | SHA40-70 | SHA60-60 | ||
| Dimensions | Standard Dimensions | 400×700 | 600×600 | |
| Wall Opening Dimensions | 394×694 | 594×594 | ||
| Inner Finishing Board Dimensions | 372×672 | 572×572 | ||
Option
Custom-Made Color Available
Installation
Attachment
Anchor Plate
