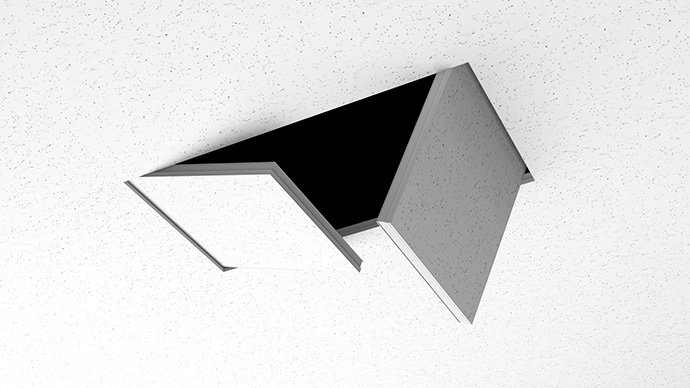

Hi-Hatch MODCeiling Access Hatch

Custom-made size available. Can make large size ceiling access hatch. Maximum size is 600 × 1200.

Installation Location

  • Ceiling

Main Features

  • Custom-Made Size of Slim Frame Available
  • Maximum Size Is 600×1200(mm)

Lineup

Size

  • 1 Lid

    Max Dimensions : 600×600(mm)

  • 2 Lids

    Max Dimensions : 600×1200(mm)

Opening and Closing Part

  • Standard Type

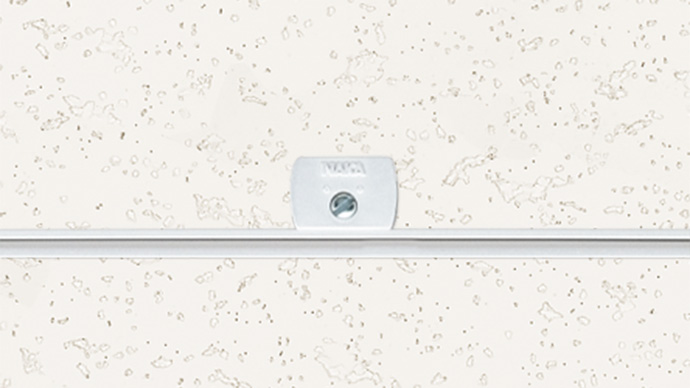

  • Key Type (Key N301)

    Can Key Sharing with SD, AT, DX

Color Variation

  • Silver Color

Specification

Material

Outer Frame, Inner Frame/ Extruded Aluminum A6063S-T5 Anodized
Acrylic Baked Cating Available (Acrylic Baked Coating Available by Custom-Made)

Option

Acrylic Baked Coating Available (Custom-Made Finishing)

Installation

Attachment

Channel Catch

Use channel catch to attach.
